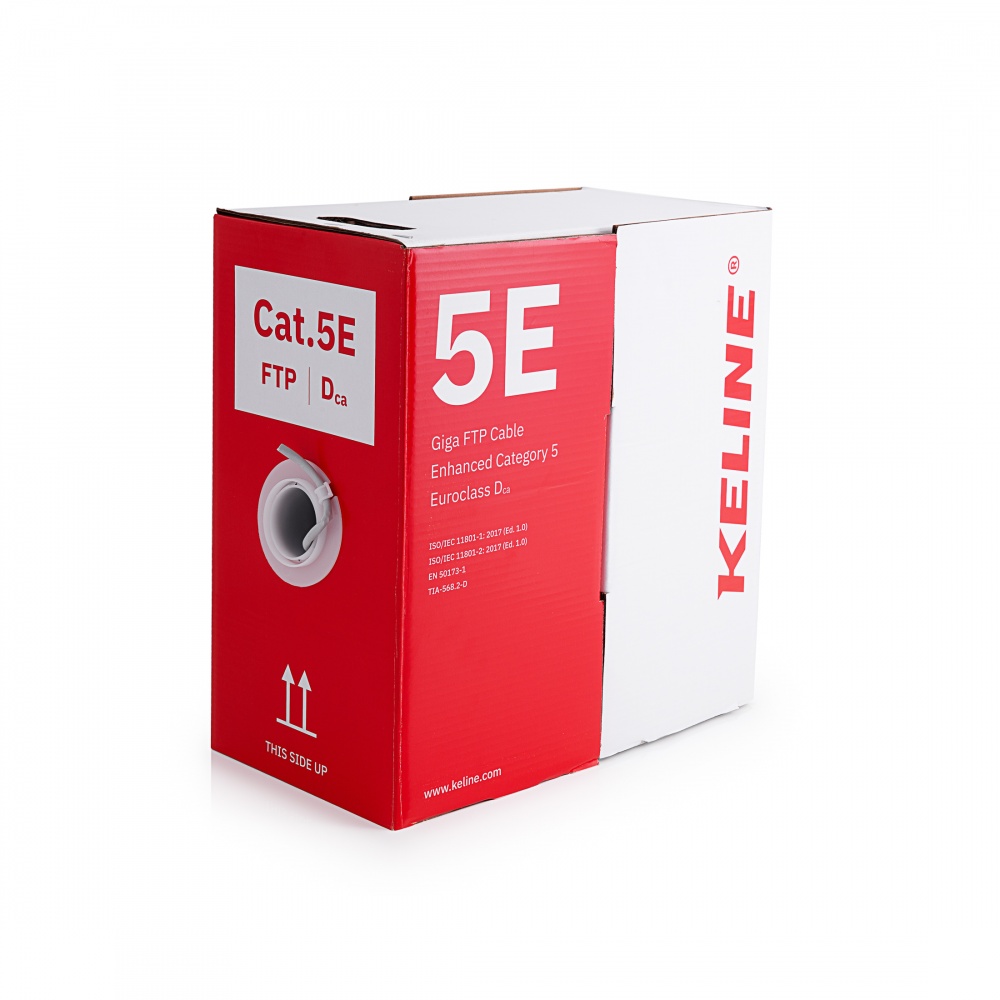

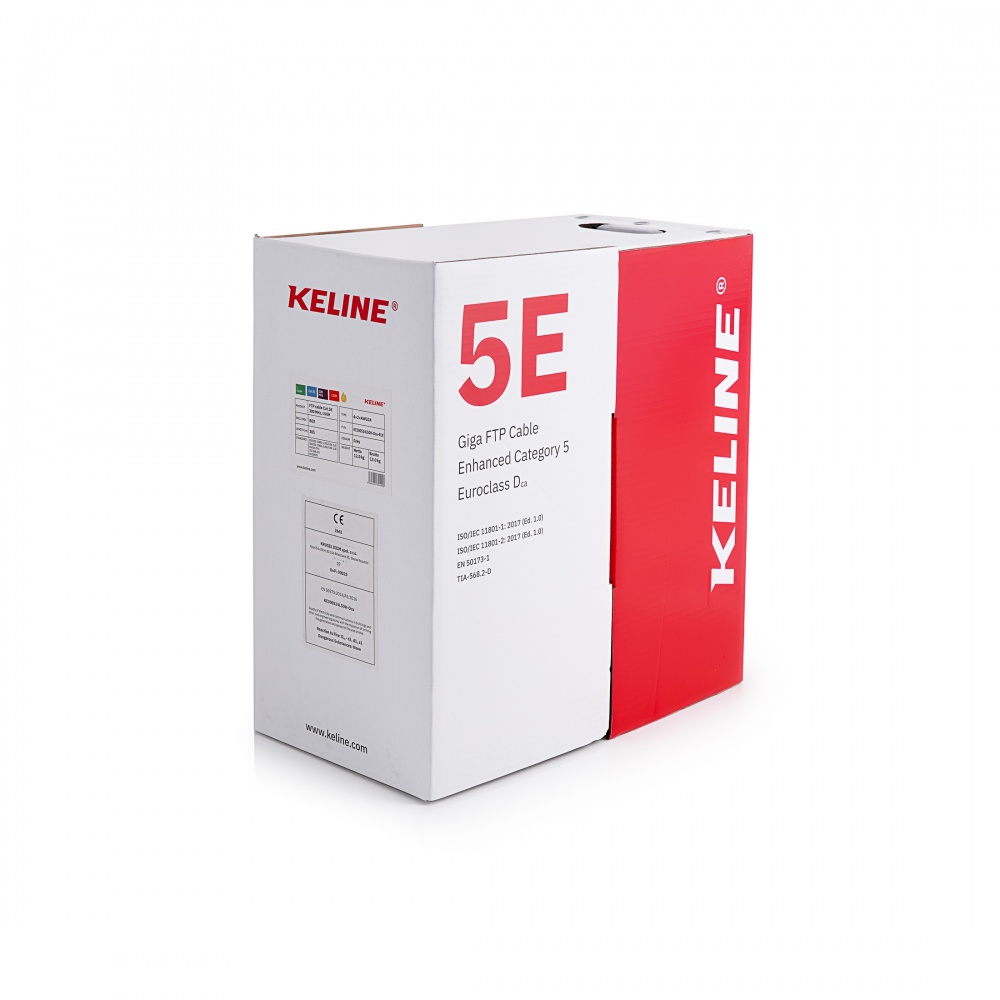

Home Keline^® structured cabling system Copper cabling Cat. 5E shielded components Installation cables FTP (F/UTP) cable, 4x2xAWG24, Category 5E, 300 MHz, LSOH, Euroclass D_ca - s2, d1, a1, 305 m in a box

FTP (F/UTP) cable, 4x2xAWG24, Category 5E, 300 MHz, LSOH, Euroclass Dca - s2, d1, a1, 305 m in a box

P/N: KE300S24LSOH-Dca-RLX

cable shielded with AL/PET foil, halogen-free sheath
enables transmission of all high-speed protocols including 1000BASE-T
tested in bandwidth up to 300 MHz
enables RJ45 connectors to be mounted directly to a cable

DATASHEET CERTIFICATE DECLARATION OF PERFORMANCE Декларация за Експлоатационни Показатели EKSPLOATACINIŲ SAVYBIŲ DEKLARACIJA DECLARACIÓN DE PRESTACIONES

Min. bending radius - installation	49 mm
Min. bending radius - operation	25 mm
Max. tensile load	110 N (11 kg)
Temperature range - installation	0°C to +60°C
Temperature range - operation	-20°C to +60°C
Outer cable diameter	6,1 mm
Copper conductor diameter	AWG 24
NVP	cca 69 %
Reaction to fire	D_ca - s2, d1, a1
Fire safety	flame retardant, low smoke, halogen-free, non-corrosive

The determination of Reaction to Fire Class Performance of this cable has been performed by Product Certification Body notified by European Commision, which also carries out the assessment and verification of constant performance (AVCP) in the System 3.
