Technical specification
Min. bending radius - installation | 56mm |
Min. bending radius - operation | 28mm |
Max. tensile load | 100N (10kg) |
Temperature range | -15°C to +75°C |
Outer cable diameter | 7,0mm |

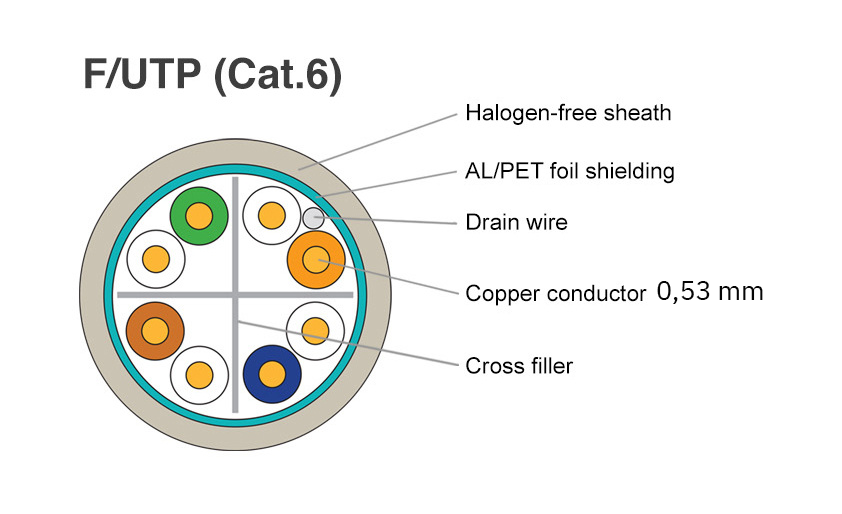

Copper conductor diameter | 0,53mm |
NVP | cca 69% |
Reaction to fire | Eca |
Fire safety | flame retardant, low smoke, zero halogen, non-corrosive |
