Outdoor UTP (U/UTP) cable, 4x2x0,54, Category 6, 400 MHz, PE

Outdoor UTP (U/UTP) cable, 4x2x0,54, Category 6, 400 MHz, PE

Shielding: Unshielded, Sheath: Outdoor / direct burial cable, Performance category: Category 6
P/N: KE400U23OUT-RLX
km
  • unshielded cable with pairs separated by a cross filler, PE sheath
  • resistant to moisture, water and UV radiation
  • enables transmission of all high-speed protocols including 1000BASE-T
  • tested in a bandwidth up to 400MHz
  • not shielded against electromagnetic interference

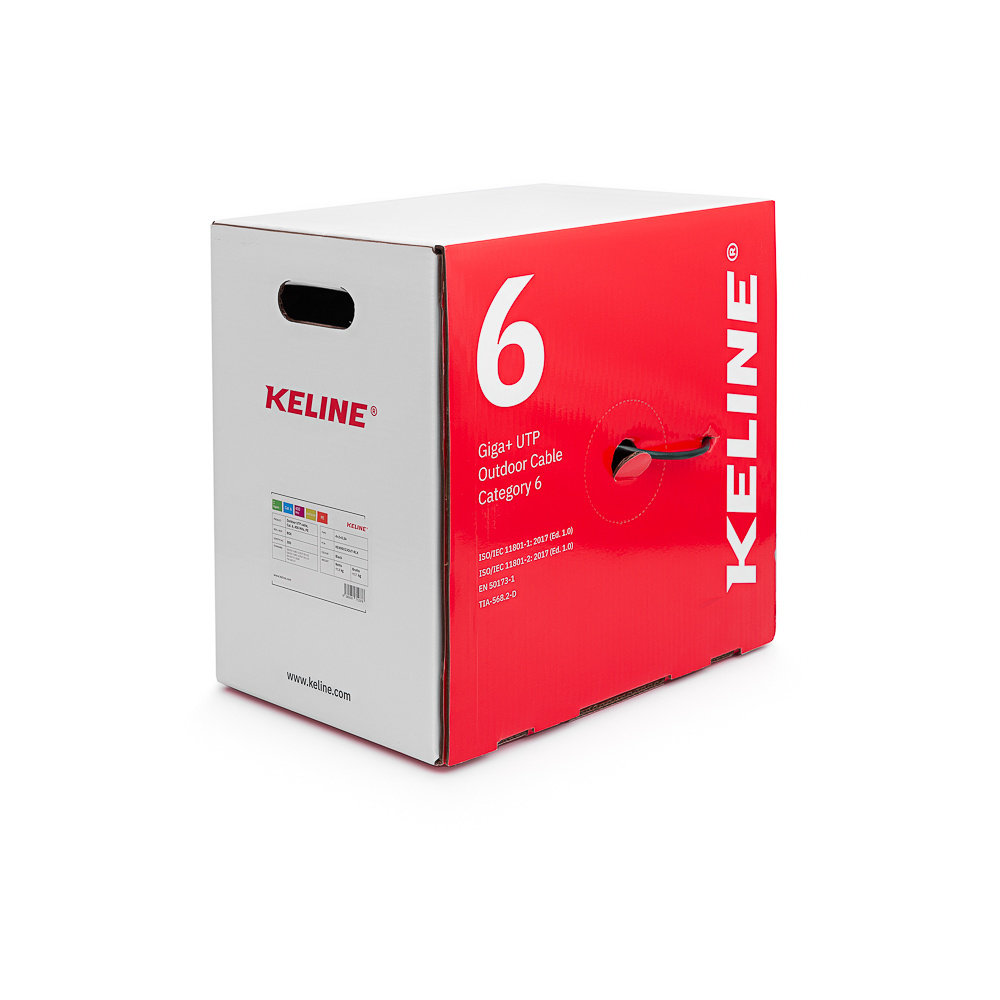

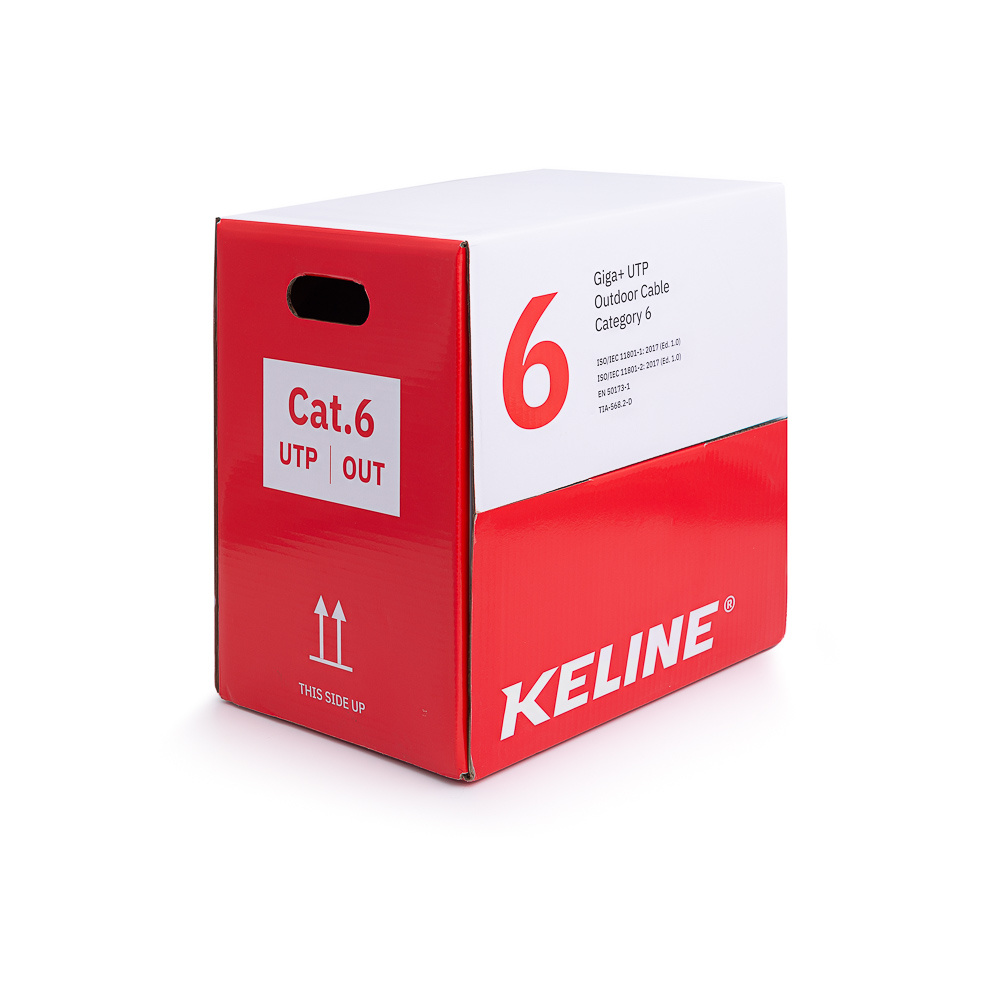

  • 305m in box
DATASHEET

Technical specification

Min. bending radius - installation 48 mm
Min. bending radius - operation 24 mm
Max. tensile load 100N (cca. 10kg)
Temperature range - installation 0°C to +50°C
Temperature range - operation -20°C to +60°C
Outer cable diameter 6 mm
NVP cca 69%

Certificates and Warranties








25-Year System Warranty
