Technical specification
| Color | gray RAL7035 (standard), black RAL9005 |
| Surface | structured, matt |

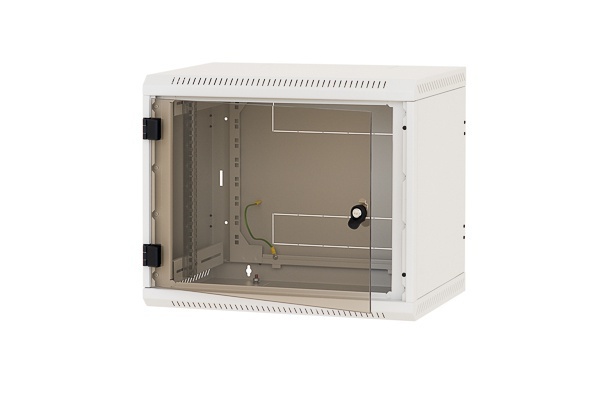

One-sectioned, 19“ wall-mounted cabinet RBA depth 495 mm
P/N: RBA-xx-AS5-CAY-A1
Height
Depth
Width
Construction
pc
- welded construction with iP30 protection
- hardened smoked glass door (standard)

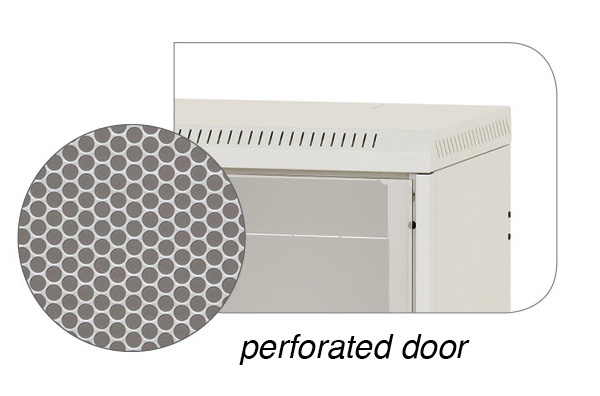

- solid steel or perforated door (air permeability 80%) available upon request
- front vertical rails freely adjustable in any depth of the cabinet
- rear vertical fixed rails
- frame of the cabinet and all removable parts are connected with earthing cables
- cable openings covered with breakout-type blanking panels located at the top, bottom and rear part of the cabinet
- protective blanking panel with a brush to seal the cabinet opening against dust penetration (1 pc)
- set of M6 screws and captive nuts (8 pcs)
