Home Keline®​ structured cabling system LC-SC Duplex patch cord, OM4 50/125 µm

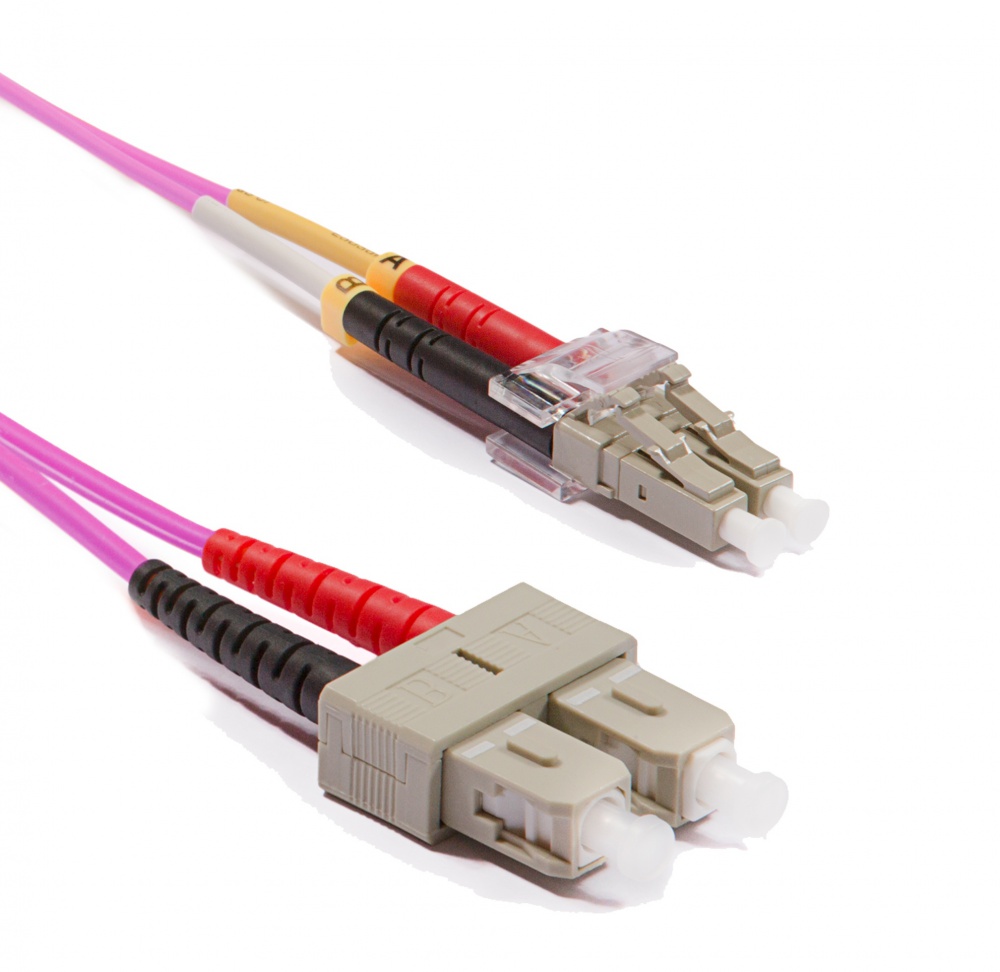

LC-SC Duplex patch cord, OM4 50/125 µm

LC-SC Duplex patch cord, OM4 50/125 µm

P/N: POM4D-LCSC-xxx
Performance category
OM4 multimode
Connectors
LC-SC
Patch cable length
1 m 2 m 3 m 5 m 7 m 10 m 15 m 20 m
pc
  • halogen-free sheath



DATASHEET

Technical specification

Connector LC
Polishing PC
Return loss ≥ 20 dB
Insertion loss ≤ 0,3 dB
Ferrule material ceramic (zirconia)
Ferrule diameter 1,25 mm
Insertion / extraction cycles min. 1000
Connector SC
Polishing PC
Return loss ≥ 20 dB
Insertion loss ≤ 0,3 dB
Ferrule material ceramic (zirconia)
Ferrule diameter 2,5 mm
Insertion / extraction cycles min. 1000
