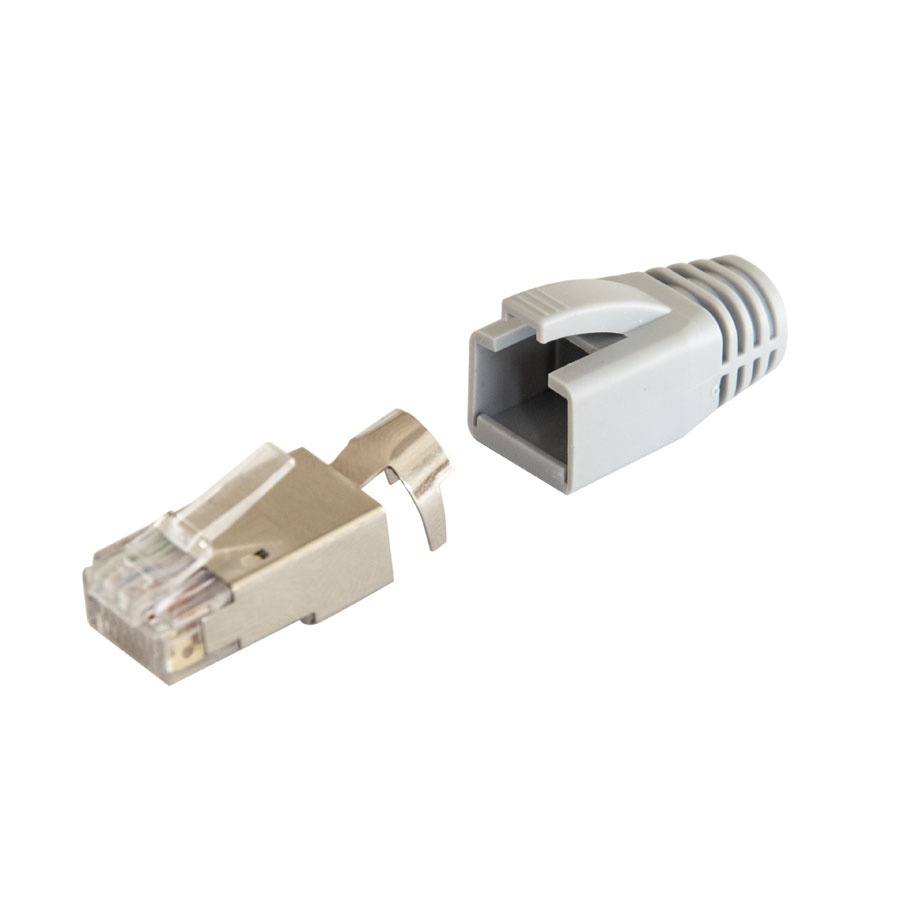

Name: Keline connector RJ45/s for Cat. 7<sub>A</sub>, Cat. 7, Cat. 6<sub>A</sub>, Cat. 6 cables
Availability: InStock

P/N: KE-RJ45-SC6A

direct termination on Cat. 7_A, Cat. 7, Cat. 6_A, Cat. 6 shielded cables
required installation space 23 mm

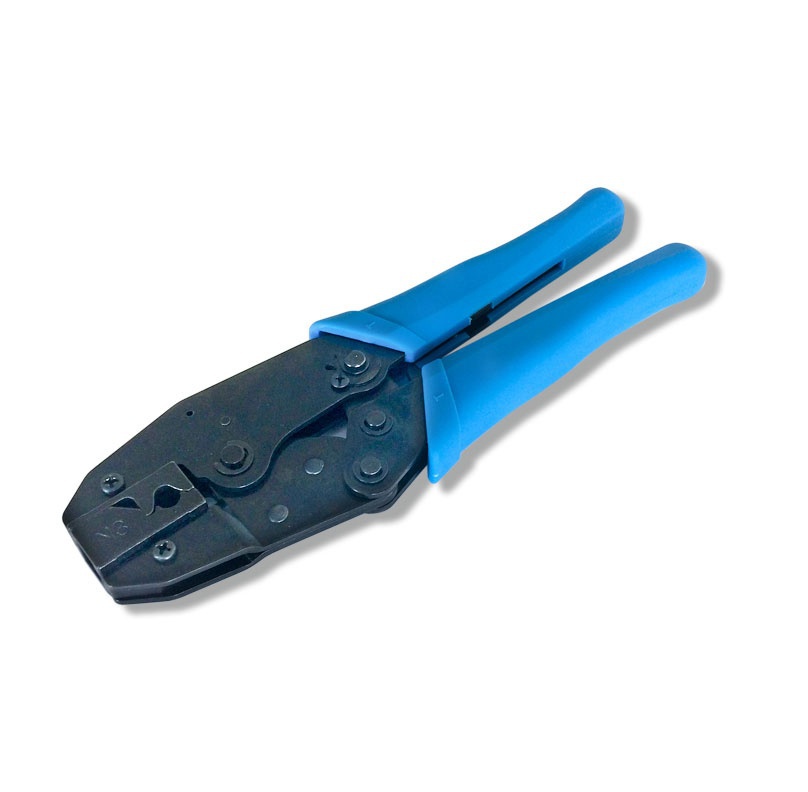

special crimping pliers are required for mounting KE-CT-SC6A
ideal for IP camera and wireless devices even where instrument-free connector cannot be used for limited space KE-FT45-C6AS
supplied with boots for this connector
enables transmission of all high-speed protocols including 10GBASE-T within the system Cat. 6A
guarantees a bandwidth of 500 MHz within the system Cat. 6A
perfectly shielded against Alien Crosstalk and electromagnetic interference

DATASHEET

Suitable for installing on cables with solid wires	from AWG 23 to AWG 22
Suitable for installing on cables with outer diameter	from 5 to 8 mm
Pin material	copper alloy coated with 50 μ of gold
Insertion / extraction cycles	min. 750
Required installation space	23 mm

KE-CT-SC6A

Keline connector RJ45/s for Cat. 7_A, Cat. 7, Cat. 6_A, Cat. 6 cables

Technical specification
