P/N: RZA-xx-A86-CAY-A1

Height

Width

Depth

Construction

screwed construction with iP20 protection
partial or complete dismantling enables installation to difficult to reach places

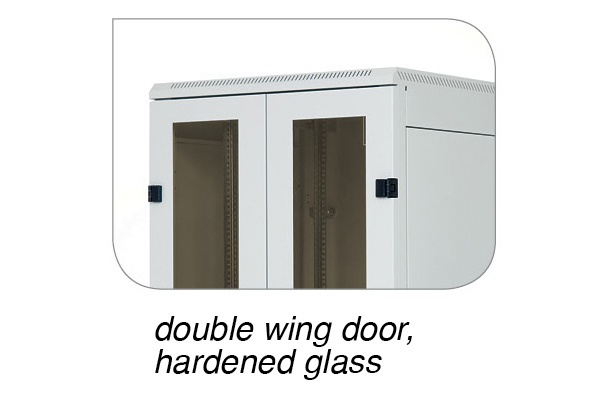

hardened smoked glass door (standard)

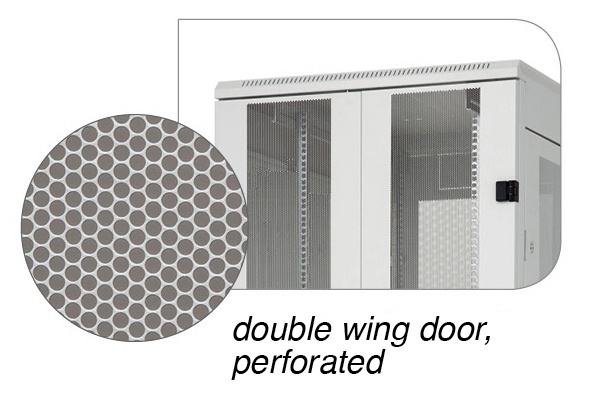

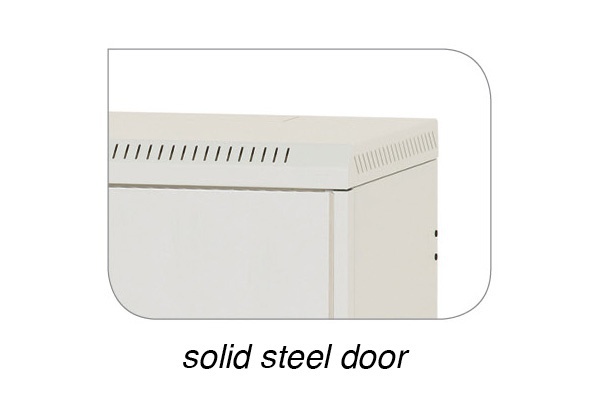

solid steel or perforated door (air permeability 80%) available as single or double-wing request
removable and lockable side panels and rear cover enable an easy access to the installed devices
possibility of replacing rear cover with door (the same variants as the front door)
front vertical rails are continuously adjustable
frame of the cabinet and all removable parts are connected with earthing cables
cable openings covered with breakout-type blanking panels located at the top, bottom and rear part of the cabinet
breakout-type blanking panels for fan units are located in the top and bottom of the cabinet
nivelation feet (standard)
castors RAX-MS-X81-X1 and base with filter RAB-PO-XXX-XN, RAC-PO-XXX-XN available upon request
sliding vertical rails installation in a span of 19”, 21” or 23”
protective blanking panel with a brush to seal the cabinet opening against dust penetration (1 pc)
set of M6 screws and captive nuts (16 pcs)
